Customer: Cybenetics LTD
Syrou 6, Latsia, 2231, Nicosia Cyprus
Syrou 6, Latsia, 2231, Nicosia Cyprus
Elite Gold 1000
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 88.644% | 90.694% |

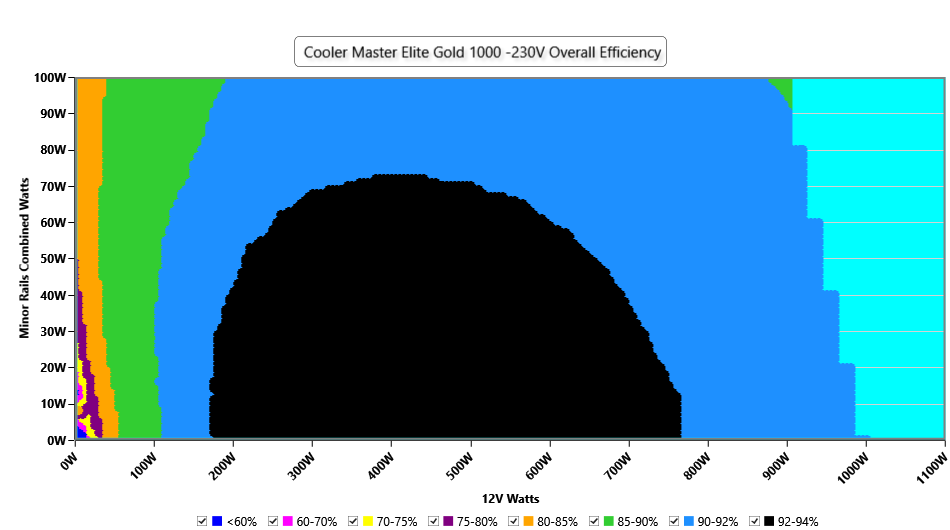

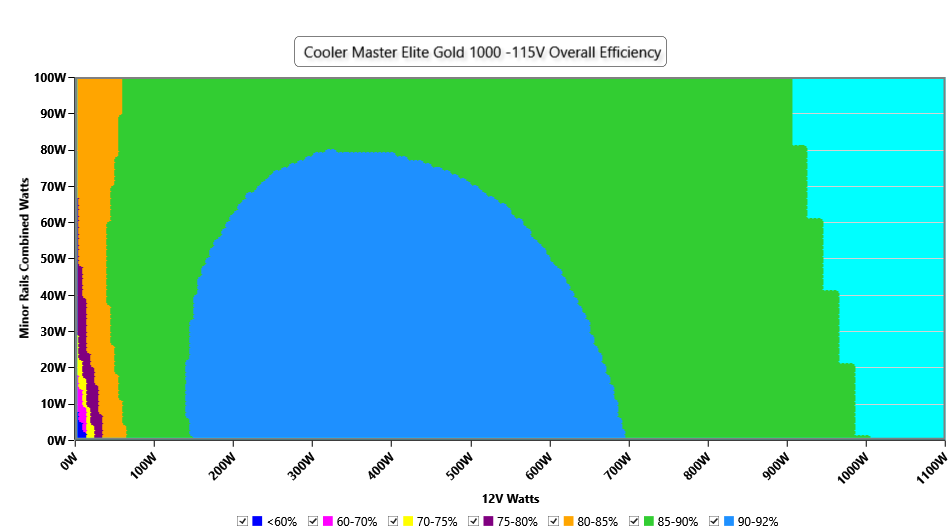

| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.978 | 0.943 |
| 12V Step | 10.00W | |
| 5V/3.3V Step | 2.00W | |
| Standby Power Consumption | 0.0358W | 0.0792W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 79.769% | 79.750% |
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 34.13dBA | 32.88dBA |

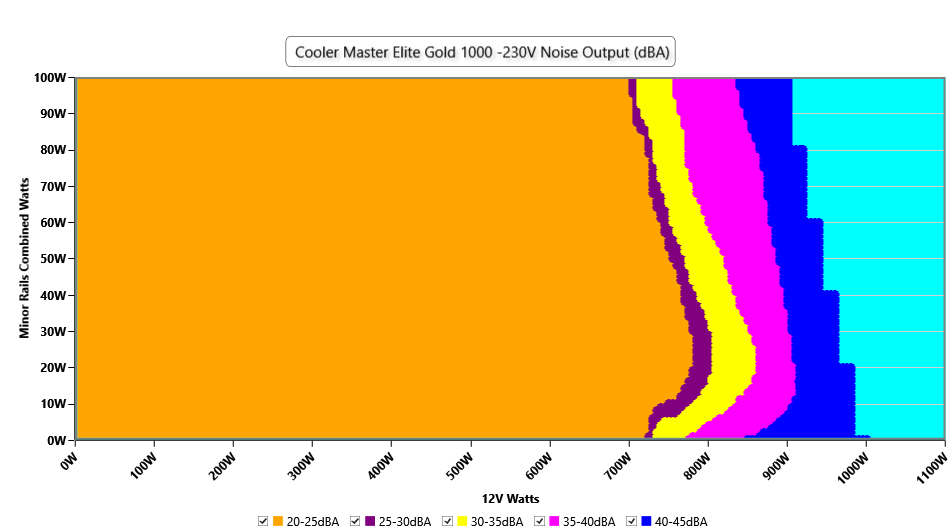

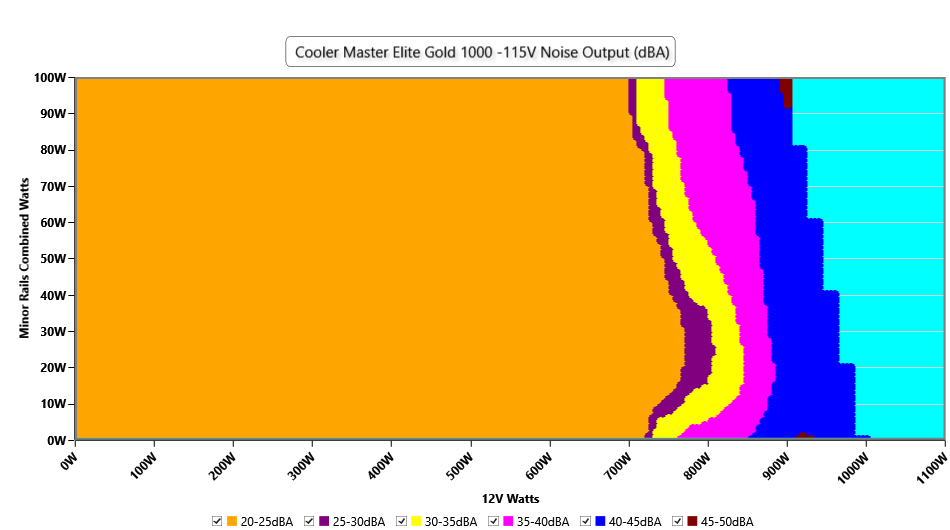

| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 68.158% |
| Hold Up Time | 16.00ms |
| Power OK | 12.70ms |
| Power OK to DC Loss | 3.30ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 11.913 | 4.970 | 3.257 | 5.008 |
| 10ms | 11.631 | 4.941 | 3.217 | 4.973 |
| 1ms | 11.508 | 4.925 | 3.198 | 4.954 |
| 0.1ms | 11.384 | 4.911 | 3.180 | 4.935 |
| Product Identification Details | |
| Brand | Cooler Master |
| Model | Elite Gold 1000 |
| OEM | XHY |
| Serial Number | CM1301000E41091301000013 |
| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 6-13 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 1000 |
| Operating Temperature (Continuous Full Load) (°C) | 0 - 40 |
| Type | ATX12V |
| Cable Design | Fully Modular |
| Warranty | 5 Years |
| Cybenetics | |
| Dimensions (W x H x D) | 150 x 85 x 140mm |
| Weight | 1.53 kg (3.37 lb) |
| Cooling | 120mm Rifle Bearing Fan (DF1202512RFMN) |
| Semi-Passive Operation | ✗ |
| Cybenetics Testing Information | |
| Lab ID | CM10003108 |
| Date of receipt | Jan 7, 2026 |
| Testing Date | Feb 10, 2026 |
| Report Issued Date | Feb 20, 2026 |
| Engineer Name | Ioannis Kalyviotis |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 20+4 pin (600mm) | 1 | 1 | 18-22AWG | Tinned Copper |
| 4+4 pin EPS12V (600mm) | 1 | 1 | 18AWG | Tinned Copper |
| 8 pin EPS12V (600mm) | 1 | 1 | 18AWG | Tinned Copper |
| 6+2 pin PCIe (500mm) | 3 | 3 | 18AWG | Tinned Copper |
| 12+4 pin PCIe (650mm) (600W) | 1 | 1 | 16-24AWG | Tinned Copper |
| SATA (400mm+125mm) / 4-pin Molex (+125mm) | 2 | 4 / 2 | 18AWG | Tinned Copper |
| AC Power Cord (1370mm) - C13 coupler | 1 | 1 | 17AWG | - |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| General Data | |
| Manufacturer (OEM) | Xin Hui Yuan Technology |
| PCB Type | Double-Sided |
| Primary Side | |
| Transient Filter | 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x Sync Power SP687 (X Capacitor Discharge IC) |
| Inrush Protection | 1x NTC Thermistor MF72 5D-15 (5.0 Ohm @ 25°C) & Relay |
| Bridge Rectifier | 2x Yangzhou Yangjie GBUL2506 (600V, 25A @ 125°C) |
| APFC MOSFETs | 2x China Resources CRJT99N65G2F (650V, 20A @ 100°C, Rds(on): 0.090 Ohm) |
| APFC Boost Diode | Xiamen Sanan Integrated Circuit SDS065J006C3 (650V, 8.7A @ 135°C) |
| Bulk Cap(s) | 1x Nichicon (420V, 560uF, 2000h @ 105°C, GL ) |
| Main Switchers | 4x China Resources CS20N50FA9R (500V, 12.5A @ 100°C, Rds(on): 300mOhm) |
APFC Controller | Champion CM6500UNX |
| Resonant Controller | Champion CM6901T6X |
| Topology | Primary side: APFC, Full-Bridge & LLC Resonant Converter |
| Secondary Side | |
| +12V MOSFETs | 4x UNI U300N06LF (60V, 300A @ 100°C, Rds(on): 0.75mOhm) |
| 5V & 3.3V | DC-DC Converters: 4x China Resources CRSM035N03L6Z (30V, 54A @ 100°C, Rds(on): 3.1mOhm) |
| Filtering Capacitors | Electrolytic: |
| Supervisor IC | IN1S4241-SDG (OVP, UVP,PG) |
| Fan Power Switch | D965A NPN Transistor |
| Fan Model | MARTECH DF1202512RFMN (120mm, 12V, 0.37A, Rifle Bearing Fan) |
| 5VSB Circuit | |
| Rectifier | Dongke DK5V60R10S (60V, 10mΩ) |
| Standby PWM Controller | ExcellianceMOS EM8569C |
| Photos |  |  |

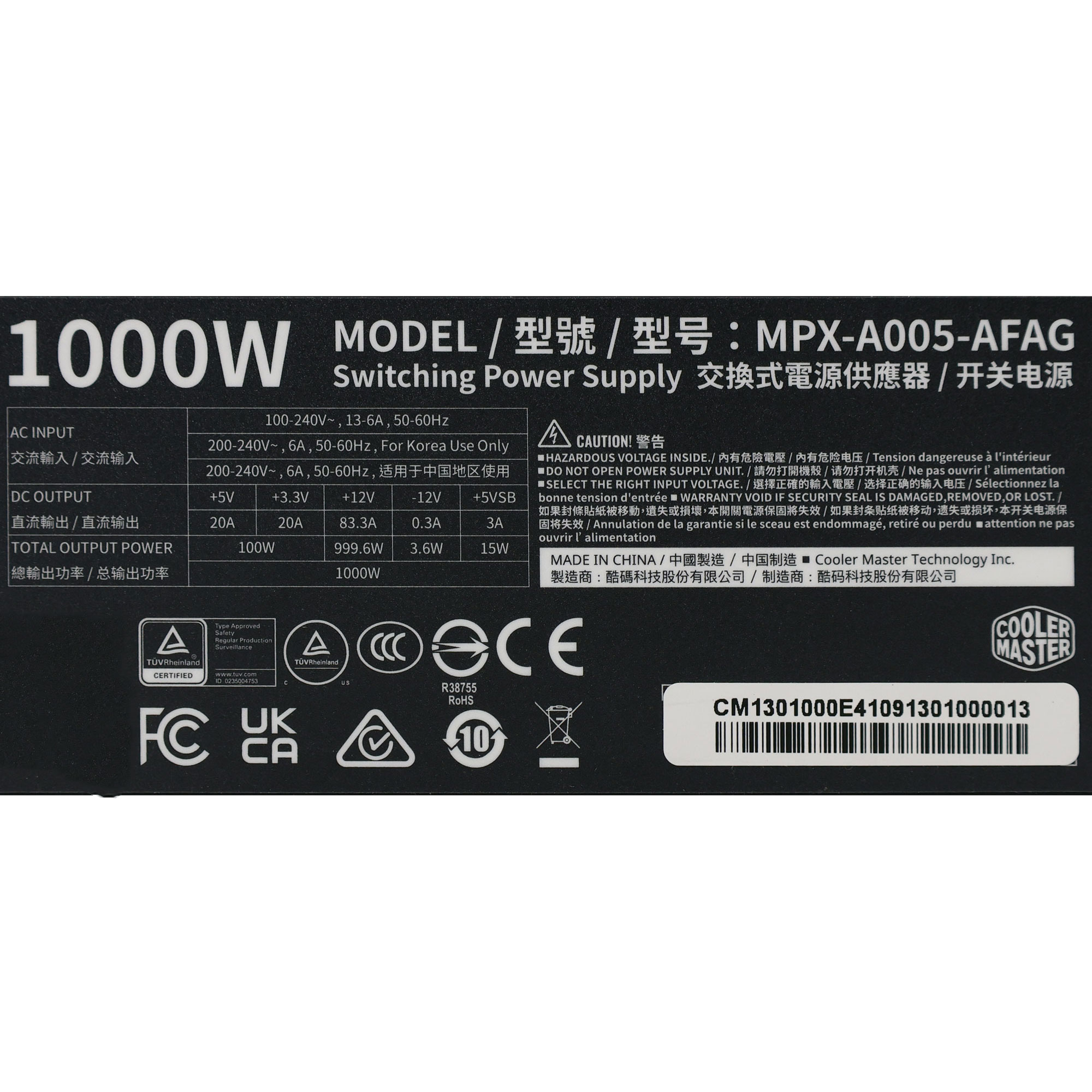

| Top side | Power specifications label |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.18% |
| Timings | ±0.48ms |
| Power Excursions (Transient Response) | ±0.1V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dBμV |
| Noise Output | ±1.23 dB |
