Steel Legend SL-1200P
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 89.941% | 92.123% |

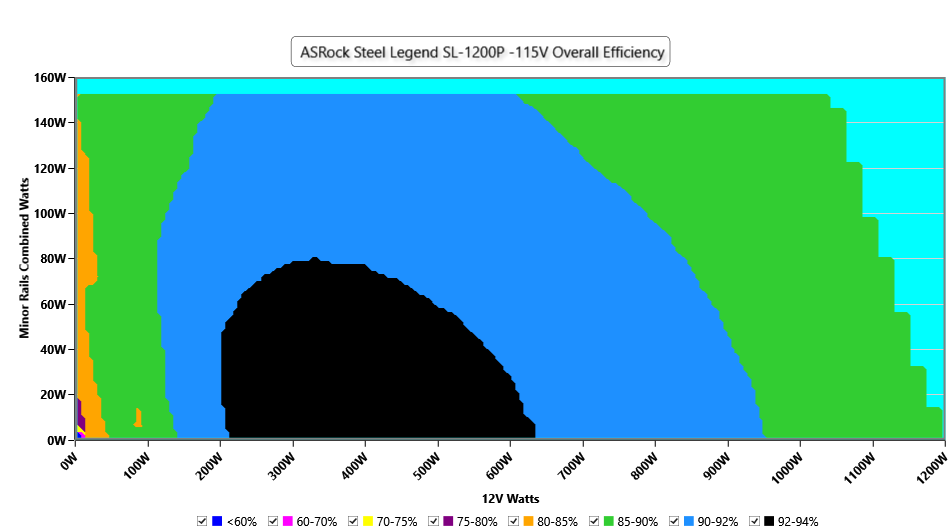

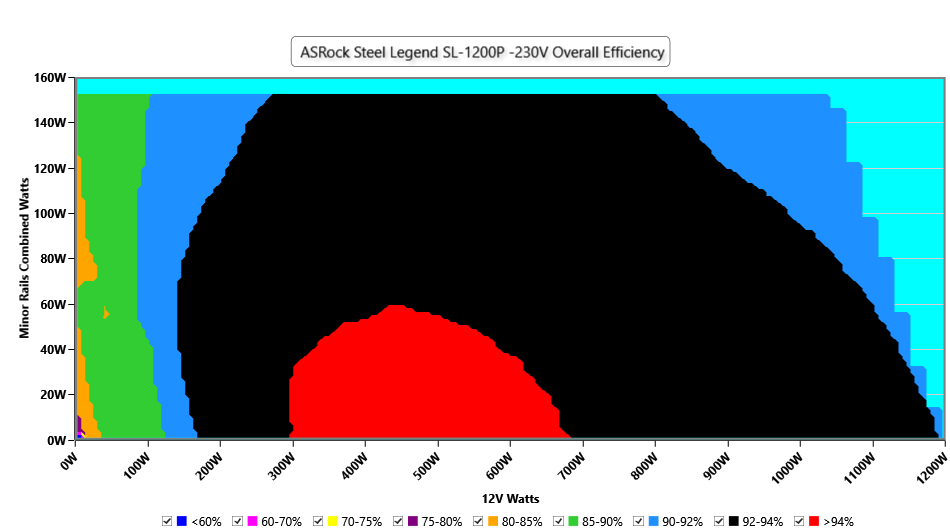

| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.983 | 0.948 |
| 12V Step | - | |
| 5V/3.3V Step | - | |
| Standby Power Consumption | 0.0531W | 0.0938W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 85.427% | 85.078% |
| Voltage | 115V | 230V |
|---|---|---|

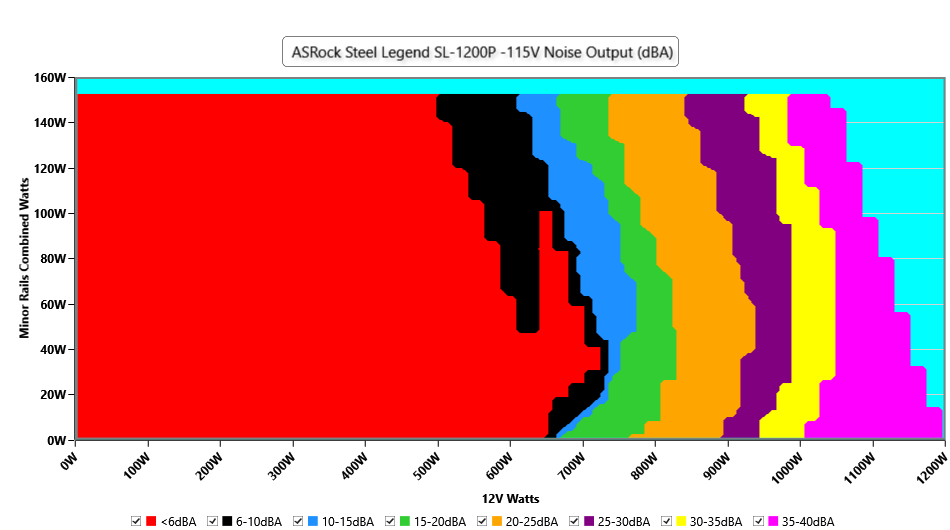

| Noise Rating (>1450 Load Combinations) | 21.48dBA | 21.89dBA |

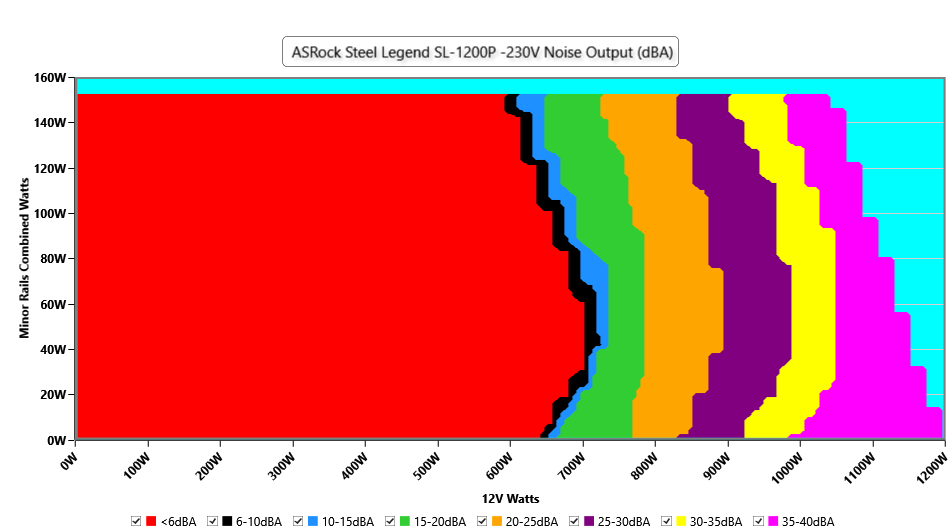

| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 79.182% |
| Hold Up Time | 21.70ms |
| Power OK | 19.00ms |
| Power OK to DC Loss | 2.70ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 11.843 | 5.096 | 3.250 | 5.068 |
| 10ms | 11.549 | 5.059 | 3.212 | 5.039 |
| 1ms | 11.426 | 5.044 | 3.197 | 5.025 |
| 0.1ms | 11.324 | 5.031 | 3.182 | 5.013 |
| Product Identification Details | |
| Brand | ASRock |
| Model | Steel Legend SL-1200P |
| OEM | HEC |
| Serial Number | - |
| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 7.5-15 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 1200 |
| Operating Temperature (Continuous Full Load) (°C) | 0 - 50 |
| Type | ATX12V |
| Cable Design | Fully Modular |
| Warranty | No Info |
| Cybenetics | |
| Dimensions (W x H x D) | 150 x 85 x 150mm |
| Weight | 1.86 kg (4.10 lb) |
| Cooling | 135mm Fluid Dynamic Bearing Fan (RL4Z S1352512EH-3M) |
| Semi-Passive Operation | ✓ (selectable) |
| Cybenetics Testing Information | |
| Lab ID | AR12003095 |
| Date of receipt | Dec 1, 2025 |
| Testing Date | Jan 7, 2026 |
| Report Issued Date | Jan 15, 2026 |
| Engineer Name | Georgios Theodoros Sarimpalas |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 24 pin (590mm) | 1 | 1 | 16-18AWG | Tinned Copper |
| 4+4 pin EPS12V (640mm) | 1 | 1 | 18AWG | Tinned Copper |
| 8 pin EPS12V (640mm) | 1 | 1 | 18AWG | Tinned Copper |
| 6+2 pin PCIe (650mm) | 2 | 2 | 16AWG | Tinned Copper |
| 8 pin PCIe (650mm) | 1 | 1 | 16AWG | Tinned Copper |
| 12+4 pin PCIe (650mm) (600W) | 2 | 2 | 16-24AWG | Tinned Copper |
| SATA (450mm+120mm+120mm+120mm) | 2 | 8 | 18AWG | Tinned Copper |
| SATA (450mm) / 4-pin Molex (120mm+120mm+120mm) | 1 | 1 / 3 | 18AWG | Tinned Copper |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| General Data | |
| Manufacturer (OEM) | HEC |
| PCB Type | Double-Sided |
| Primary Side | |
| Transient Filter | 5x Y caps, 3x X caps, 2x CM chokes, 1x MOV, 1x Power Integrations CAP200DG (X capacitor Discharge IC) |
| Inrush Protection | 1x NTC Thermistor SCK205R0 (5 Ohm @25°C) & 1x Relay |
| Bridge Rectifier | 2x GBU25506P (600V, 25A ) |
| APFC MOSFETs | 3x Infineon IPA60R080P7 (650V, 23A @ 100°C, Rds(on): 0.08Ohm) |
| APFC Boost Diode | 1x Wolfspeed C6D10065A(650V, 10A @ 155°C) |
| Bulk Cap(s) | |
| Main Switchers | 2x Infineon IPA60R080P7 (650V, 23A @ 100°C, Rds(on): 0.08Ohm) |
| APFC Controller | |
| Resonant Controller | 1x Champion CU6901VABN |
| Topology | Primary side: APFC, Half-Bridge & LLC Resonant converter |
| Secondary Side | |
| +12V MOSFETs | 8x PINGWEI PWC012N04ES (45V, 220A @ 25℃, Rds(on):1.2mOhm) |
| 5V & 3.3V | DC-DC Converters: 5x JSCJ CJAC2R5SN04C (40V, 130A @ 25°C, Rds(on): 2.0mOhm) PWM Controller(s): 1x ANPEC APW7159C |
| Filtering Capacitors | Electrolytic: |
| Supervisor IC | Weltrend WT7527RT (OCP, OVP, UVP, SCP, PG) |
| Fan Controller / Micro Controller | Nuvoton MS51FB9AE |
| Fan Model | RL4Z S1352512EH-3M (135mm, 12V, 0.50A, Fluid Dynamic Bearing Fan) |
| 5VSB Circuit | |
| Rectifier | PINGWEI PWUR1013P (100V,9A) |
| Standby PWM Controller | Excelliance MOS EM8569D |

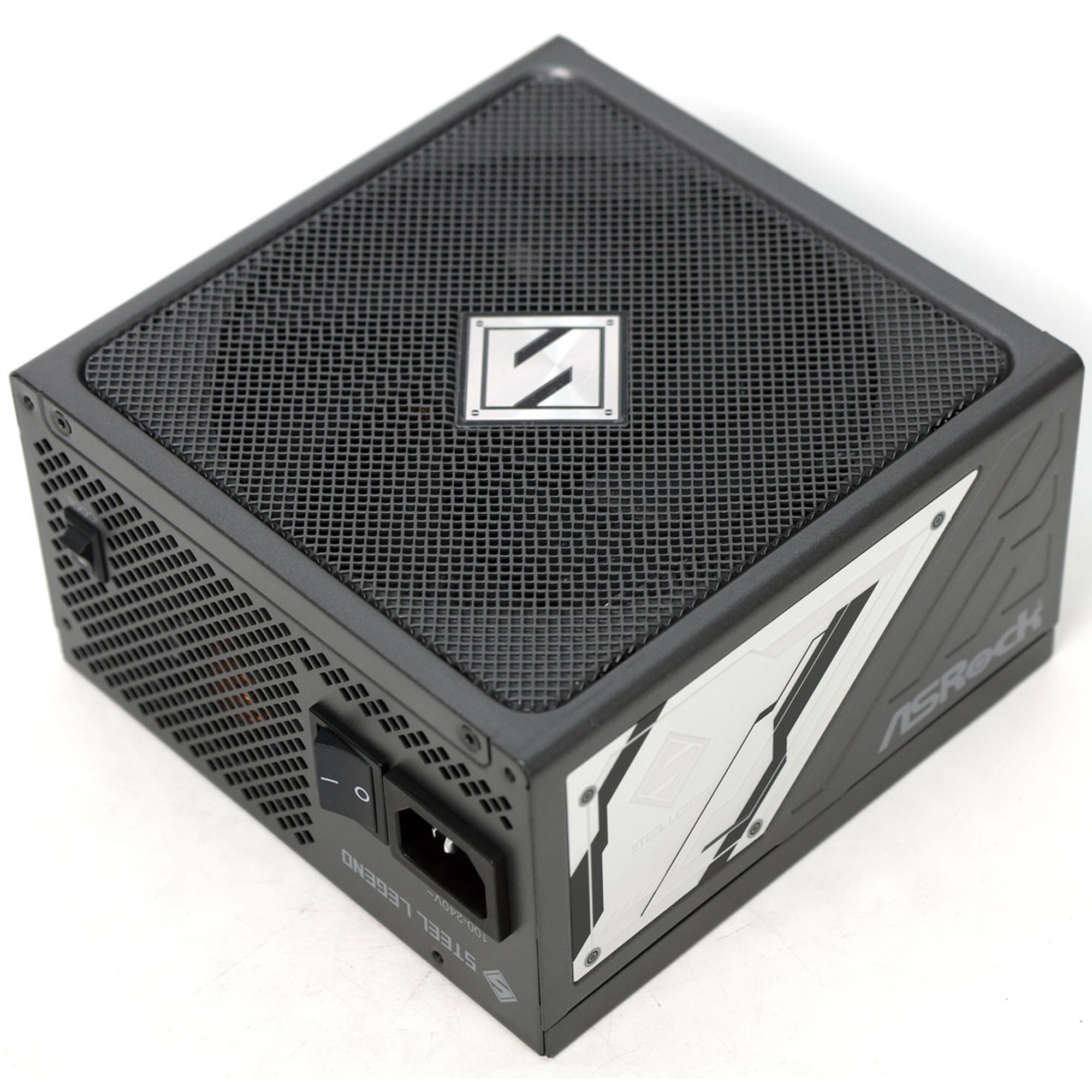

| Photos |  |  |

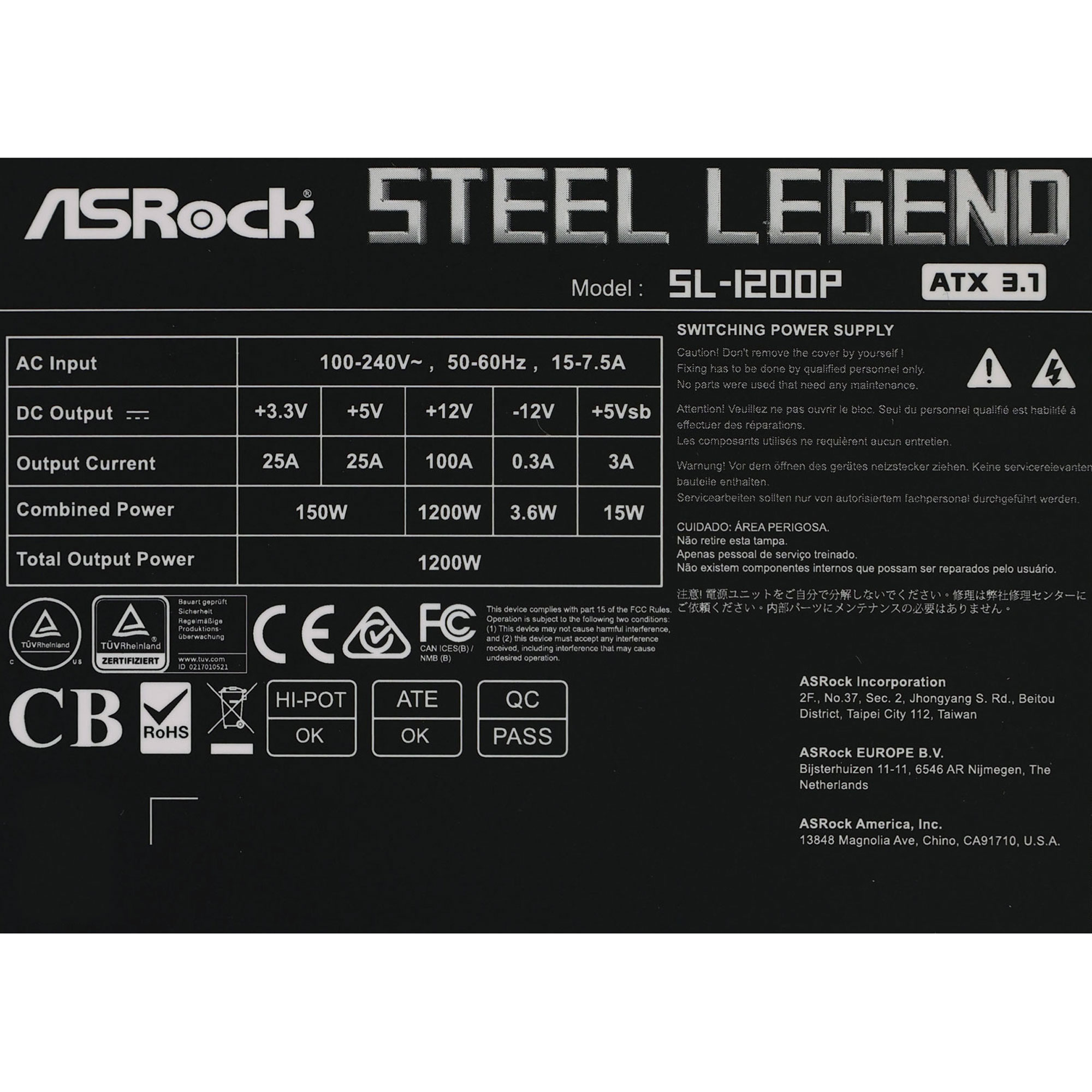

| Top side | Power specifications label |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.18% |
| Timings | ±0.48ms |
| Power Excursions (Transient Response) | ±0.1V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dBμV |
| Noise Output | ±1.23 dB |
