Customer: -
ACG1000
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015, Rohde & Schwarz NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger |
Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA | Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 88.334% | 90.402% |

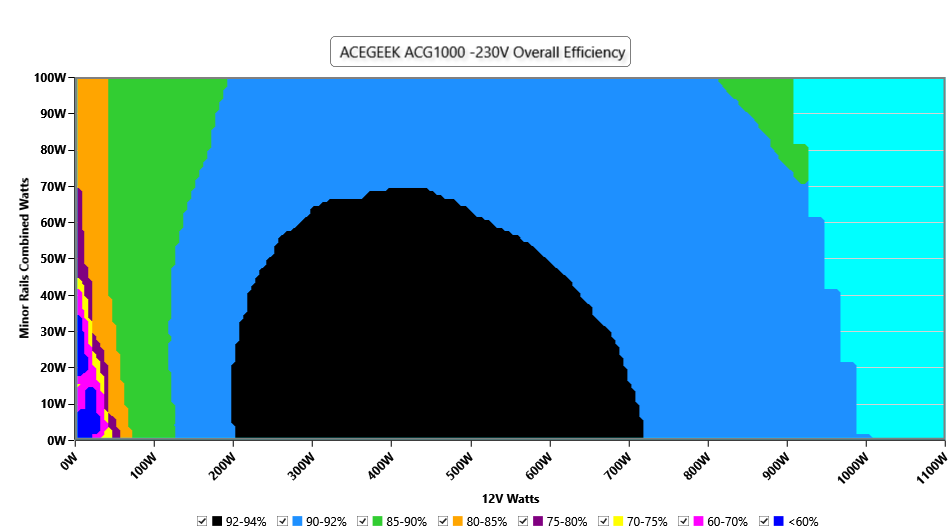

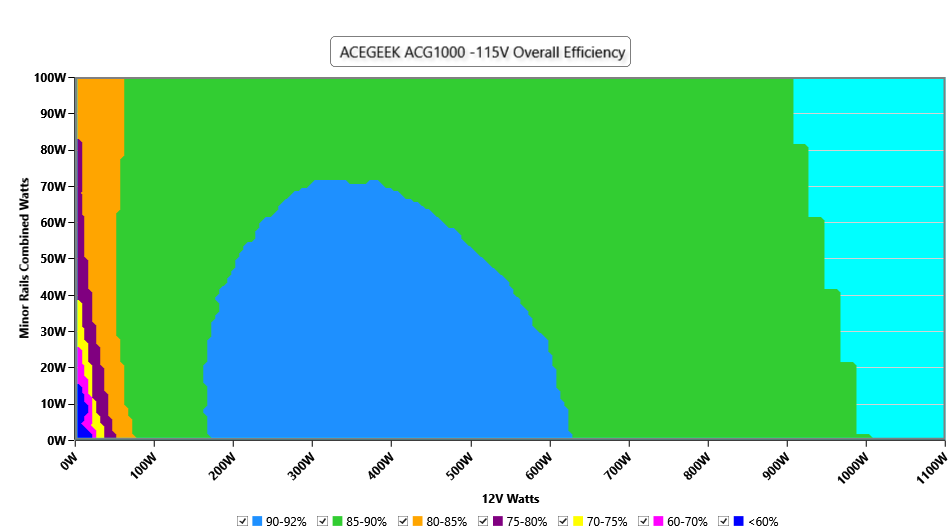

| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.980 | 0.932 |
| Standby Power Consumption | 0.1179W | 0.1403W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 79.905% | 79.783% |
| Conducted Emissions EN55032 & CISPR 32 | Passed | |
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 43.62dBA | 43.34dBA |

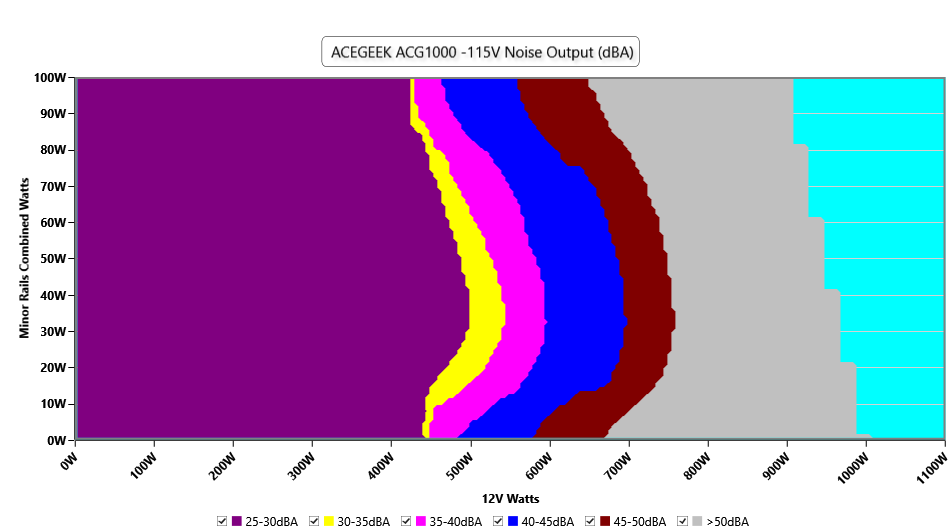

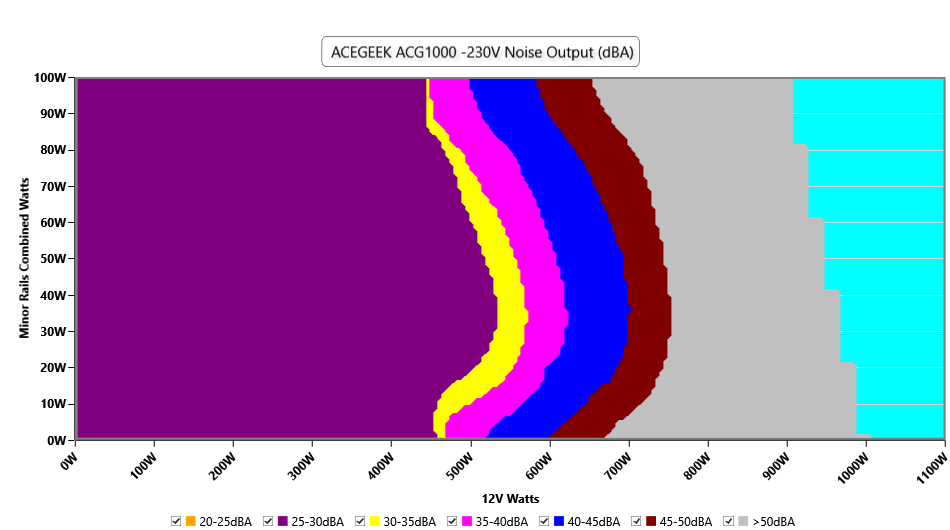

| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 67.196 |
| Hold Up Time | 17.60 |
| Power OK | 15.70 |
| Power OK to DC Loss | 1.90 |
| Model Name | ACEGEEK |
| Lab ID | AG10002887 |
| Serial Number | - |
| Date of receipt | Jun 17, 2025 |
| Testing Date | Jul 14, 2025 |
| Report Issued Date | Jul 16, 2025 |
| DUT Notes | 2887 |
| Engineer Name | |
| Authorized By the Laboratory General Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | In Cable Capacitors |
| ATX connector 24 pin (600mm) | 1 | 1 | 18AWG | No |
| 4+4 pin EPS12V (700mm) | 2 | 2 | 18AWG | No |
| 6+2 pin PCIe (600mm) | 3 | 3 | 18AWG | No |
| 12+4 pin PCIe (600mm) (600W) | 1 | 1 | 16-28AWG | No |
| SATA (450mm+150mm+150mm+150mm) | 1 | 4 | 18AWG | No |
| SATA (450mm+150mm) / 4-pin Molex (+150mm+150mm) | 1 | 2 / 2 | 18AWG | No |
| AC Power Cord (1065mm) - C13 coupler | 1 | 1 | 18AWG | - |
| Manufacturer (OEM) | No Info |
| Max. DC Output | 1000W |
| Efficiency (115V) | Cybenetics Gold (88.334%) |
| Efficiency (230V) | Cybenetics Gold (90.402%) |
| Noise (115V) | Cybenetics Standard (43.62 dB[A]) |
| Noise (230V) | Cybenetics Standard (43.34 dB[A]) |
| Modular | ✓ (Fully) |
| Intel C6/C7 Power State Support | ✓ |
| Operating Temperature (Continuous Full Load) | 0 - 50°C |
| Over Voltage Protection | ✓ |
| Under Voltage Protection | ✓ |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| No Load Operation | ✓ |
| Cooling | 120mm Sleeve Bearing Fan (S1202512M) |
| Semi-Passive Operation | ✗ |
| Dimensions (W x H x D) | 150 x 85 x 140mm |
| Weight | 1.39 kg (3.06 lb) |
| Form Factor | ATX12V v3.1, EPS 2.92 |
| ATX 3.1 & PCIe 5.1 ready | ✓ |
| Alternative Low Power Mode (ALPM) compatible | ✓ |
| Warranty | No Info |
| General Data | ||
| Manufacturer (OEM) | Andyson | |
| PCB Type | Double-Sided | |
| Primary Side | ||
| Transient Filter | 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV | |
| Inrush Protection | NTC Thermistor SCK 056 (5 ohm) & Relay | |
| Bridge Rectifier(s) | 2x HY Electronic GBU1506L (600V, 15A @ 100°C) | |
| APFC MOSFETs | 2x PingWei PWE120N65SFMF (650V, 20A @ 100°C, Rds(on): 120mOhm) | |
| APFC Boost Diode | 1x Global Power Technology G4S06510AT (650V, 10A @ 151°C) | |
| Bulk Cap(s) | 1x Nippon Chemi-con (400V, 820uF, 2000h @ 105°C, CE) | |
| Main Switchers | 2x PingWei PWE120N65SFMF (650V, 20A @ 100°C, Rds(on): 120mOhm) | |
APFC Controller | ||
| Resonant Controller | AT2003SSP8 | |
| Topology | Primary side: APFC, Full-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters | |
| Secondary Side | ||
| +12V MOSFETs | 8x PingWei PWC012N04ES (40V, 132A @ 100°C, Rds(on): 1.2mOhm) | |
| 5V & 3.3V |
| |
| Filtering Capacitors | Electrolytic: | |
| Supervisor IC | Esthome EST.7630FS (OCP, FPOB, PGO, OVP, UVP) | |
| Fan Model | Globe Fan S1202512M (120mm, 12V, 0.30A, Sleeve Bearing Fan) | |
| 5VSB Circuit | ||
| Rectifier | 1x PingWei PS1045L (45V, 10A) | |
| Standby PWM Controller | Esthome EST.3026M | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 6-12 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 1000 |
| Type | ATX12V |
| Dimensions (W x H x D) | |
| Cooling | 120mm Sleeve Bearing Fan (S1202512M) |
| Semi-Passive Operation | ✗ |
| Cable Design | Fully Modular |
The Efficiency Measurement’s Uncertainty is ±0.15%
The reported expanded uncertainty (U) was derived as the product of the combined standard uncertainty (u) and the coverage factor k = 2, corresponding to a confidence interval of approximately 95%. Measurement uncertainty was determined in accordance with JCGM Guide 100:2008, "Guide to the Expression of Uncertainty in Measurements". The estimate of the reported uncertainty pertains to values obtained during the measurements and does not account for possible long-term changes.
Efficiency Measurement Uncertainty Budget
| Source of Uncertainty | Standard Uncertainty, u(xi) | Relative Standard Uncertainty, u(xi)/xi |
| Intralab Reproducibility | 0.0310 | 0.00031 |
| Electronic loads Calibration | 0.0500 | 0.00050 |
| Power Analyzer Calibration | 0.0250 | 0.00025 |
| Operator and Test Fixture | 0.0350 | 0.00035 |
| Relative Combined Standard Uncertainty (RSS): | 0.00073 | |
| % Expanded Uncertainty U (k=2, norm): | 0.15 | |
The Noise Measurement’s Uncertainty is ±1.23 dBA
The reported expanded uncertainty (U) was derived as the product of the combined standard uncertainty (u) and the coverage factor k = 2, corresponding to a confidence interval of approximately 95%. Measurement uncertainty was determined in accordance with JCGM Guide 100:2008, "Guide to the Expression of Uncertainty in Measurements". The estimate of the reported uncertainty pertains to values obtained during the measurements and does not account for possible long-term changes.
| Source of Uncertainty |
Standard Uncertainty, u(xi)/xi (dBA) |
| Intralab Reproducibility | 0.031 |
| Mic Calibrator 4231 calibration | 0.200 |
| Microphone frequency response | 0.577 |
| Temperature | 0.12 |
| Position error | 0.058 |
| Relative Combined Standard Uncertainty (RSS): | 0.61 |
| Expanded Uncertainty U (k=2, norm): | 1.23 |
The Conducted EMI Emissions Measurement’s Uncertainty is ±1.75 dB
The reported expanded uncertainty (U) was derived as the product of the combined standard uncertainty (u) and the coverage factor k = 2, corresponding to a confidence interval of approximately 95%. Measurement uncertainty was determined in accordance with JCGM Guide 100:2008, "Guide to the Expression of Uncertainty in Measurements". The estimate of the reported uncertainty pertains to values obtained during the measurements and does not account for possible long-term changes.
| Source of Uncertainty |
Standard Uncertainty, u(xi)/xi (dB) |
| Spectrum Analyzer total measurement uncertainty | 0.250 |
| Spectrum Analyzer calibration | 0.500 |
| Noise and Signal Quality | 0.577 |
| Bandwidth and Resolution Bandwidth (RBW) | 0.289 |
| Measurement time and Averaging | 0.115 |
| Environmental Factors | 0.115 |
| Relative Combined Standard Uncertainty (RSS): | 0.87 |
| Expanded Uncertainty U (k=2, norm): | 1.75 |
